12 Rows Downspout Roll Forming Machine / Tube Forming Machine For Steel Plate

Chứng nhận
chất lượng tốt Máy cán tự động giảm giá
chất lượng tốt Máy cán tự động giảm giá
Tôi trò chuyện trực tuyến bây giờ

12 Rows Downspout Roll Forming Machine / Tube Forming Machine For Steel Plate

Trung Quốc 12 Rows Downspout Roll Forming Machine / Tube Forming Machine For Steel Plate nhà cung cấp
12 Rows Downspout Roll Forming Machine / Tube Forming Machine For Steel Plate nhà cung cấp 12 Rows Downspout Roll Forming Machine / Tube Forming Machine For Steel Plate nhà cung cấp 12 Rows Downspout Roll Forming Machine / Tube Forming Machine For Steel Plate nhà cung cấp

Hình ảnh lớn :  12 Rows Downspout Roll Forming Machine / Tube Forming Machine For Steel Plate

Thông tin chi tiết sản phẩm:

Place of Origin: Botou,Hebei Province
Chứng nhận: BV,SGS, CE,ISO9001

Thanh toán:

Minimum Order Quantity: 1 Set
Giá bán: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Chi tiết sản phẩm
Condition: New Type: Tile Forming Machine
Production: 0-15m/min Power: 11 kw+5.5kw
Voltage: 380V 60HZ or at your requirement After-sale: Engineers available to service

Equipments For Waterspout Downpipe Drainpipe Roll Forming Machine ,Downspout Roll Forming Machines



Workflow



Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table



Technical Parameters (depending on specific requirements of users)



Suitable steel plate







Type Color steel plate
Thickness 0.3-1.0mm
Feeding width As users needs
Effective width As users needs
Production speed 8-12m/min
Roller stand 12 rows
Roller Diameter 52mm
Main power 4kw
Pump power 3kw
Side panel of machine 14mm
Roller material Carbon 45# steel
Blade material Cr12, quenched, Cr-plating size 0.05mm
Control system Delta PLC control
Main structure of the machine 300mm H-Beam



Components

No. Item Unit Qty
1 Manual decoiler set 1
2 Main roll forming machine set 1
3 Main machine of composting set 1
4 PLC control box set 1
5 Supporter table set 1

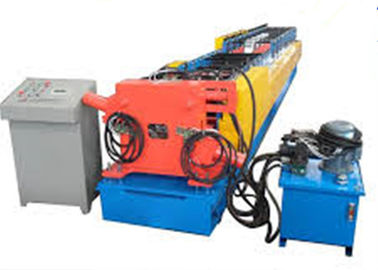

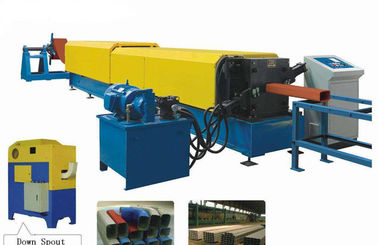

Product Pictures

Steel panel downpipe roll forming machine / colored steel down spout down-pipe making machine

Steel panel downpipe roll forming machine / colored steel down spout down-pipe making machine


Packaging & Shipping

1). Tighten to container with steel wire rope and welded machine with container by angel iron

2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)

3). PLC contral system and motor pump are packed in wooden box with water proof paper coverage

cnc roll forming machine steel gutter/ round downpipe making machine


Our Services

1. The warranty of the machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.
